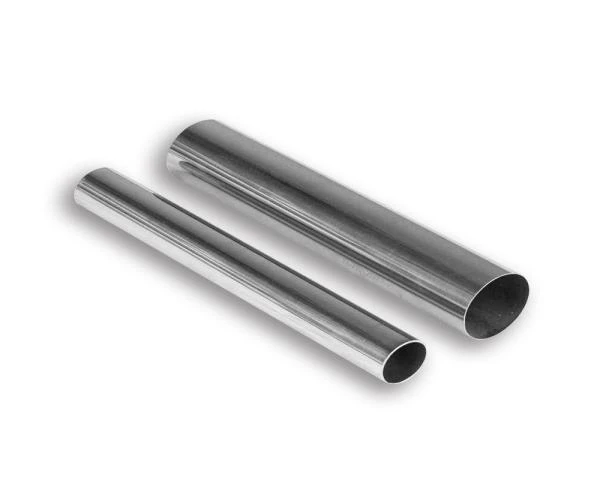

S32205 Stainless steel pipe
Stainless steel pipe is a kind of hollow long round steel, mainly used in petroleum, chemical, medical, food, light industry, mechanical instrument and other industrial pipeline and mechanical structural parts.In addition, in the bending, torsional strength is the same, the weight is relatively light, so it is also widely used in the manufacture of mechanical parts and engineering structures.It is also commonly used as furniture, kitchenware, etc.
WhatsApp: + 8613122742391
E-mail: a@largesteelplant.com
CONTACT US
Products Detail
Message
Products Recommended


ASTM/ASMEEURONORMAFNORDIN/EN
A240 UNS S32205/S318031.4462 X2CrNiMoN 22.5.3Z3 CrNi 22.05 AZW. Nr 1.4462


DescriptionS32205 Stainless steel pipe
Process MethodCold Rolled Hot Rolled
SizeNormal size:Outer diameter =  12.7-600mm;Thickness = 0.8-20 mm;Length = 6 -12m.Or as customer' s request
StandardsASTM / ASME, GB, DIN, JIS, EN, etc.
ApplicationSurgical instruments,Water and sewage treatment,Sensor pipe,etc.
Packing1.with plastic cap to protect both ends
2.plastic bag wrapped outside the pipe
3.bundles to be covered by polythene & strapped securely .
4.if require ,then pack into wooden box.


Chemical Composition(%)
CSMnPSCrNiMoNCu
≤0.030≤1.00≤2.00≤0.030≤0.02021-234.5-6.52.5-3.50.08-0.2-

Mechanical Property
Tensile Strength(MPa)Yeild Strength(MPa)Elongation(%)Hardness(HV)
≥620≥450≥25≤303
SurfaceCharacteristicSummary of Manufacturing MethodApplication
NO.1Silvery white
lackluster		Hot rolled to specified thicknessDo not need to have a glossy surface use
NO.2DSilvery whiteAfter cold rolling, heat treatment and pickling are carried outGeneral material, deep material
NO.2BGloss is stronger than No.2DAfter No.2D treatment, the final light cold rolling is carried out through the polishing rollerThe general material
BAAs bright as a sixpenceNo standard, but usually a bright annealed surface with high reflectivity.Building materials, kitchen utensils
NO.3Rough lappingGrind with 100~200# (unit) strop tapeBuilding materials, kitchen utensils
NO.4Intermediate grindingPolished surface obtained by grinding with 150~180# strop abrasive tapeBuilding materials, kitchen utensils
NO.240Fine lappingGrinding with 240# strop abrasive tapekitchenware
NO.320Very fine grindingGrinding was carried out with 320# strop abrasive tapekitchenware
NO.400The luster is close to BAUse 400# polishing wheel to grindGeneral timber, building timber, kitchen appliances
HLHairline grindingSuitable particle material for hair stripe grinding (150~240#) with many grainsBuilding, construction material
NO.7It's close to mirror grindingUse a 600# rotary polishing wheel to grindFor art or decoration
NO.8Mirror ultrafinishThe mirror is ground with a polishing wheelReflector, for decoration




Resistance to corrosion

Uniform corrosion

Because OF CHROMIUM CONTENT (22%), MOLYBDENUM CONTENT (3%) AND NITROGEN CONTENT (0.18%),2205 HAS BETTER corrosion RESISTANCE THAN 316L and 317L under most conditions.

Local corrosion resistance

The CONTENT OF CHROMIUM, MOLYBDENUM AND NITROGEN IN 2205 DUPLEX STAINLESS STEEL MAKES IT HAVE STRONG RESISTANCE TO PITTING CORROSION AND GAP CORROSION IN OXIDIZING AND ACIDIC SOLUTIONS.

Stress corrosion resistance

The biphasic microstructure of stainless steel is helpful to improve the stress corrosion cracking resistance of stainless steel. Chloride stress corrosion occurs in austenitic stainless steel in the presence of certain temperature, strain, oxygen and chloride. Because these conditions are not easy to control, the use of 304L, 316L, and 317L is limited in this respect.

Corrosion fatigue resistance

The high STRENGTH and corrosion resistance of 2205 duplex steel make it have high corrosion fatigue strength. Processing EQUIPMENT IS SUSCEPTIBLE TO CORROSIVE ENVIRONMENTS and LOADING CYCLES, AND THE CHARACTERISTICS OF 2205 ARE IDEAL FOR SUCH APPLICATIONS.


  • Supply Capacity: More Than 5000 Tons

  • Minimum Quantity: 2 Tons

  • Delivery Time: 3-45 Days

  • Delivery port: Shanghai, Tianjin, Qingdao, Ningbo, Guangzhou, etc.

  • Standard: ASTM, AISI, JIS, ISO, EN, BS, GB, etc.

  • Price Terms: FOB, CFR, CIF, etc.
